LOW VOLTAGE LED STRIP -- 2835-168D
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
2835-168D

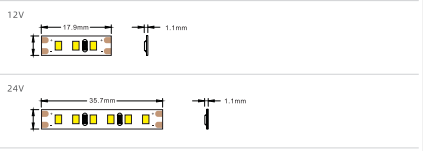

Diagram
Dimensions(mm)
|
Voltage |
Length |
Width |
Height |
Mini Cutting |
| 12V | 5M | 5/8/10MM | 1.10MM | Every 17.9MM(3 LEDs) |
| 24V | 5M | 5/8/10MM | 1.10MM | Every 35.7MM(6 LEDs) |
Specification
| Model No | Voltage | Power | Current | LED Qty | CRI |
| KB2835-168D | 12V/24V | 14W/M | 0.21(A/M) | 168 LEDs/M | >80 |
| CCT | Luminous Efficiency | Color | Lumen/m |
| 2700K | 130 lm/w | Extra Warm | 1890 lm/m |
| 3000K | 130 lm/w | Warm White | 1890 lm/m |
| 4000K | 141 lm/w | Natural White | 2060 lm/m |
| 6000K | 134 lm/w | Cold White | 2030 lm/m |
| IP Rating | ||||
| IP20 | IP44 | IP55 | IP65 | IP68 |
